B&K® Precision Roller Leveler Specifications

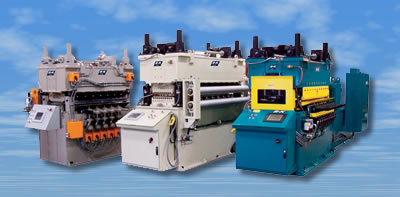

B&K® backed-up roller levelers are designed for precision coil
strip flatness and shape correction. Advanced engineering
makes these levelers “one-operator” pieces of equipment
ideal for sheet leveling, parts
leveling, cut-to-length lines
and other applications — the
perfect solution to problems
posed by coil set, cross bow,
wavy edge and center buckled
material.
B&K® Precision Levelers, with
standard 4-high and optional
5- or 6- high roll arrangements, compensate for “draw” in
roll forming applications and eliminate “dished” stampings
common in stamping processes. The result is dead-flat
panel or strip for increased productivity and part quality.
Specifications:
| Model 1.156L B&K® Precision Leveler |
| Roll Dia: 1.156 in. |
No. of Rolls: 19 |
| Material Width: |
24 |
36 |
48 |
60 |
72 |
| Back-ups: |
5 |
7 |
9 |
11 |
13 |
| Adjustable: |
3 |
5 |
7 |
9 |
11 |
| Max. Thickness: |
.078 |
.070 |
.062 |
.062 |
.054 |
| Min. Thickness: |
.010 |
.010 |
.010 |
.010 |
.015 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model 1.250L B&K® Precision Leveler |
| Roll Dia: 1.250 in. |
No. of Rolls: 19 |
| Material Width: |
24 |
36 |
48 |
60 |
72 |
| Back-ups: |
5 |
7 |
9 |
11 |
13 |
| Adjustable: |
3 |
5 |
7 |
9 |
11 |
| Max. Thickness: |
.086 |
.078 |
.070 |
.070 |
.062 |
| Min. Thickness: |
.012 |
.012 |
.012 |
.012 |
.012 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model 1.500L B&K® Precision Leveler |
| Roll Dia: 1.500 in. |
No. of
Rolls: 19 |
| Material Width: |
24 |
36 |
48 |
60 |
72 |
| Back-ups: |
3 |
5 |
5 |
7 |
9 |
| Adjustable: |
1 |
3 |
3 |
5 |
7 |
| Max. Thickness: |
.093 |
.086 |
.078 |
.078 |
.078 |
| Min. Thickness: |
.015 |
.015 |
.015 |
.015 |
.015 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model 1.750L B&K® Precision Leveler |
| Roll Dia: 1.750 in. |
No. of Rolls: 19 |
| Material Width: |
24 |
36 |
48 |
60 |
72 |
84 |
| Back-ups: |
3 |
5 |
5 |
7 |
9 |
11 |
| Adjustable: |
1 |
3 |
3 |
5 |
7 |
7 |
| Max. Thickness: |
.164 |
.156 |
.148 |
.140 |
.132 |
.125 |
| Min. Thickness: |
.021 |
.021 |
.021 |
.021 |
.021 |
.021 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model 2.250L B&K® Precision Leveler |
| Roll Dia: 2.250 in. |
No. of Rolls: 17 |
| Material Width: |
24 |
36 |
48 |
60 |
72 |
84 |
| Back-ups: |
3 |
5 |
5 |
7 |
9 |
11 |
| Adjustable: |
1 |
3 |
3 |
5 |
7 |
9 |
| Max. Thickness: |
.194 |
.187 |
.180 |
.164 |
.156 |
.140 |
| Min. Thickness: |
.036 |
.036 |
.036 |
.036 |
.036 |
.036 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model 3.00L B&K® Precision Leveler |
| Roll Dia: 3.00 in. |
No. of Rolls: 17 |
| Material Width: |
36 |
48 |
60 |
72 |
84 |
96 |
| Back-ups: |
5 |
5 |
7 |
9 |
11 |
13 |
| Adjustable: |
3 |
3 |
5 |
7 |
9 |
11 |
| Max. Thickness: |
.281 |
.265 |
.250 |
.234 |
.210 |
.187 |
| Min. Thickness: |
.048 |
.048 |
.048 |
.048 |
.048 |
.048 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model 3.50L B&K® Precision Leveler |
| Roll Dia: 3.50 in. |
No. of Rolls: 17 |
| Material Width: |
48 |
60 |
72 |
84 |
96 |
| Back-ups: |
5 |
5 |
7 |
9 |
11 |
| Adjustable: |
3 |
3 |
5 |
7 |
9 |
| Max. Thickness: |
.328 |
.320 |
.312 |
.296 |
.281 |
| Min. Thickness: |
.062 |
.062 |
.062 |
.062 |
.062 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model 4.00L B&K® Precision Leveler |
| Roll Dia: 4.00 in. |
No. of Rolls: 15 |
| Material Width: |
48 |
60 |
72 |
84 |
96 |
| Back-ups: |
5 |
7 |
9 |
11 |
13 |
| Adjustable: |
3 |
3 |
5 |
7 |
11 |
| Max. Thickness: |
.328 |
.320 |
.312 |
.296 |
.231 |
| Min. Thickness: |
.062 |
.062 |
.062 |
.062 |
.062 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
